Product Description:
L2+ Managed 24-Port Gigabit Switch with 4 x 10GbE SFP+ Ports and Power Redundancy

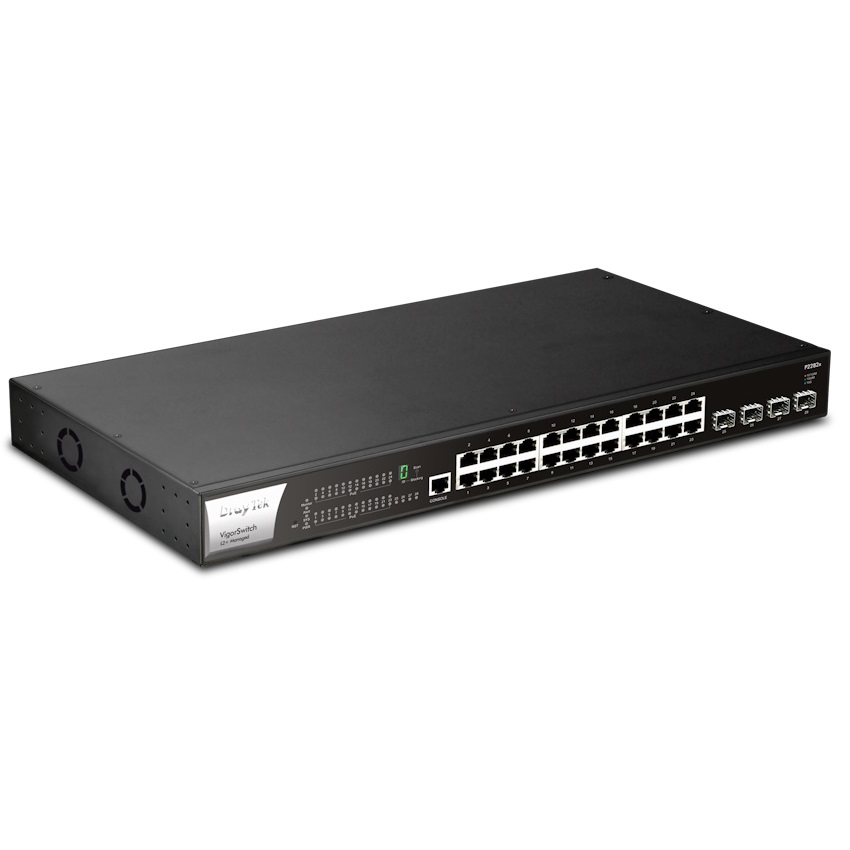

The VigorSwitch 2282x Series is a feature rich, high performance, L2+ managed Gigabit Ethernet switch with 24 1-Gigabit RJ-45 LAN ports and 4 10-Gigabit Ethernet SFP+ ports. Use the SFP+ interfaces for high-speed uplinks between switches, servers and network attached storage devices at up to 10Gbps per port.
Our cutting-edge networking switch with power redundancy options allows seamless operation and minimized downtime. This versatile switch comes equipped with both DC and AC power options, providing ultimate flexibility to cater to your unique power requirements.
The switch is also equipped with advanced management features, including VLAN support, QoS prioritization, and remote monitoring, making it ideal for use in small to medium-sized businesses and enterprise environments.
10GbE SFP+ Ports for High Speed Uplinks
The DrayTek VigorSwitch G2282x has 4 dedicated SFP+ ports for uplinks, each operating at up to 10 Gigabits per second. The faster 10 Gigabit uplink capability allows you to make high bandwidth links to Network Attached Storage, Servers and other switches, to help reduce the risk of bottlenecks occurring within your network.
The SFP+ ports provide compatibility with your choice of SFP / SFP+ modules (not included) and therefore the most appropriate medium for your application.
Connect a passive Direct Attach SFP+ cable such as the DrayTek DAC-CX10-01M to the SFP+ module port of 1Gbps/10Gbps capable Network Attached Storage, Servers and Switches, for a cost effective, up to 10Gbps network link.
Key Specifications:
- 24 x RJ-45 Gigabit Ethernet Ports
- 4 x SFP+ 10GbE Ports for Uplink / Fibre
- 802.1q VLANs (Tag, Port & MAC-based)
- VLAN Routing & Static Route with DHCP server / relay
- Virtual Router Redundancy Protocol
- QoS for Application traffic prioritisation
- 802.1x RADIUS / TACACS+ Port Authentication with Accounting
- Voice VLAN for QoS (OUI Mode)
- Access Control List (ACL)
- Port Mirroring & Link Aggregation
- IGMP Snooping/Querier (Up to 256 Multicast Groups)
- IPv4 and IPv6 Support
- Hardware Monitoring
- Centrally managed or standalone operation
- Console Port
